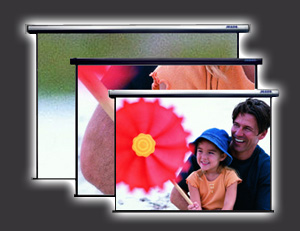

JUMBO Electric Projector Screen |
 |
| Type：Motorized Scroll type for Front Projection |

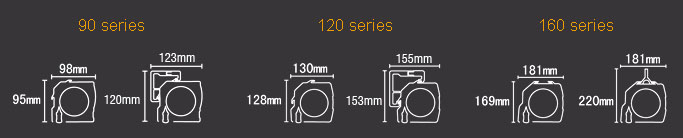

| Main structure：the main structure of screen scroll / outer housing / outer housing are made of aluminum alloy by die molding with electric high-density oxidized coating sealing treatment which have characteristics of anti-acid, anti-corrosion, good weatherproof, high strength, low weight and not easy to deform. |
| |
|
|
 |
Electric Projector Screen Patents：
 |
Slide-activity bracket：
According to the installing environment, using Brackets for slide rail system and slide rail system, the screen unit can be moved to any position on the slide rail of the outer housing, unlike other fixed mounting system, the slide rail system allows the mounting brackets to be secured on the most supported wall position |
 |
Brush to maintain：
To avert from dust, worms and noise when screen rolling up. |
 |
Complex-insert with heavy rod：
The special tenon design of Complex Aluminum Alloy Slat can clamp the fabric averagely and increase the weight, which can avert from fabric falling and surface uneven when rolling the screen down. |
|
|
Electric Projector Screen Material：
| ‧ |
Matte White –PVC laminated with glass fiber complex layer-type as fiber base with vertical and horizontal alignment interweaving, its surface applied with high-contrast optical latex which can wipe cleanly and its ideal scattering angle can be up to 100 degree, gain ratio of 1:1. |
| ‧ |
Gray Screen- PVC laminated with glass fiber complex layer-type as fiber base with vertical and horizontal alignment interweaving, its surface applied with high-contrast optical, high reflection latex which can wipe cleanly and its ideal scattering angle can be up to 140 degree, gain ratio of 1:1. |
|
|
| Drive motor：High torque axis type motor – equipped with direct driven planetary gear, electromagnetic brake and seven noise suppressing and shock-proof treatments; ultra-quiet design for reel rotating, Screen location setting device with minimum and maximum, non-stage setting on demand; with auto power-off protection device to avoid motor overheating; with CE certificate; power demand for 110V, 50Hz \ 60Hz; both sides of outer body with power supply sockets. |
|
 |
IR wireless remote controller：
Equipped with infra-red wireless remote control device, IR receiving by master control unit to control the screen positioning movements, rolling screen up or down can be automatically stopped and freely manipulated during the screen moving; can be integrated with digital environmental control. (Optional)
|
 |
RF wireless remote controller：
Applying with high-frequency microwave intelligent coding burner program, 360-degree non-point received by master control unit to control the screen positioning movements, rolling screen up or down can be automatically stopped and freely manipulated during the screen moving. (Optional) |
|
|
|
|
 |
|
|
|
