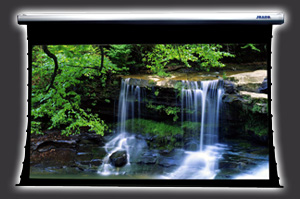

JUMBO Electric Tab-Tensioned Projection Screens

Superior delicate image, perfectly flat viewing surface, high-class theater equipment

Main structure：the main structure of screen scroll / outer housing / outer housing are made of aluminum alloy by die molding with electric high-density oxidized coating sealing treatment which have characteristics of anti-acid, anti-corrosion, good weatherproof, high strength, low weight and not easy to deform.
Equipped with screen rod leveling weight and the curved line design that can adjust the tension on screen.

Tab Tensioned Screen Material：

‧	Silica gel / white screen (CLM)：PVC Single gel screen base with black back to prevent light transmission and with telescopic extension characteristics, its surface applied with high-contrast optical latex which can wipe cleanly and its ideal scattering angle can be up to 100 degree, gain ratio of 1:1.
‧	Silica gel/gray screen(CLG)：PVC Single gel screen base with black back to prevent light transmission and with telescopic extension characteristics, its surface applied with high-contrast, high reflection optical gray latex which can wipe cleanly and its ideal scattering angle can be up to 140 degree, gain ratio of 1:0.8.

Frame rope：The frame rope is integrated with screen and die cut together, and then glue the frame rope by high-frequency to fit it on screen; the rope is made of telescopic nylon rope that will not cause excessive friction while roll down the screen and make the screen broken.

Drive motor：High torque axis type motor – equipped with direct driven planetary gear, electromagnetic brake and seven noise suppressing and shock-proof treatments; Motorized screen location device with minimum and maximum setting, non-stage setting on demand; with auto power-off protection device to avoid motor overheating; with CE certificate.

	IR wireless remote controller： Equipped with infra-red wireless remote control device, IR receiving by master control unit to control the screen positioning movements, rolling screen up or down can be automatically stopped and freely manipulated during the screen moving; can be integrated with digital environmental control. (Optional)
	RF wireless remote controller： Applying with high-frequency microwave intelligent coding burner program, 360-degree non-point received by master control unit to control the screen positioning movements, rolling screen up or down can be automatically stopped and freely manipulated during the screen moving. (Optional)

Electric Tab-Tensioned Projection Screens

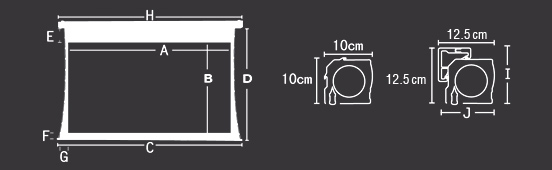

Dimension	Model	projection diagonal (inch)	viewing area W×H (cm) A x B	fabric size W×H (cm) C x D	outer shape size W×H×D (cm) H x I x J	upper black H (cm) E	lower black H (cm) F
Dimension	Model	projection diagonal (inch)	viewing area W×H (cm) A x B	fabric size W×H (cm) C x D	outer shape size W×H×D (cm) H x I x J	upper black H (cm) E	lower black H (cm) F	right left black W (cm) G	matte white CLM	gray matte CLG	silver CLS
4:3	JSV-E92	92"	186*140	206*228	2331212	80	8	12	●
	JSV-E100	100 "	203*152	223*240	2491212	80	8	12	●
	JSV-E120	120"	244*183	266*271	2931212	80	8	12	●
16:9	JSH-E92	92"	203*114	223*202	2501212	80	8	12	●	●	●
	JSH-E100	100 "	221*124	241*212	2671212	80	8	12	●	●	●
	JSH-E120	120"	265*149	285*237	3121212	80	8	12	●	●	●
